Universal Robots

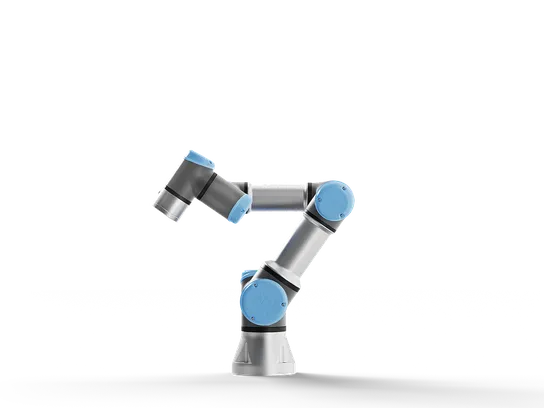

UR3e

e-Series. 3 kg / 6.6 lbs payload; 500 mm / 19.7 in reach; Ø128 mm footprint; 11.2 kg robot weight. Smallest cobot in the lineup. Ideal for bench-top assembly, lab automation, and electronics. IP54; self-calibration; omni-mount; field-replaceable joints.

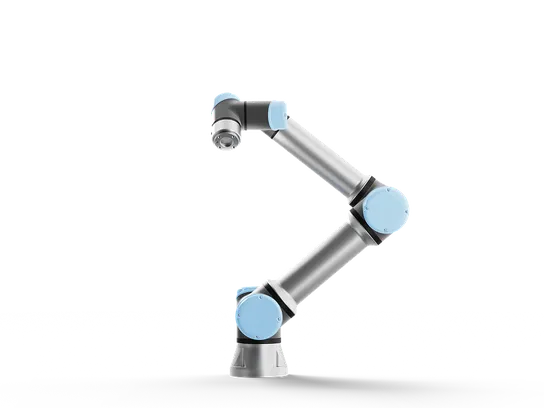

UR7e

e-Series. 7.5 kg / 16 lbs payload; 850 mm / 33.5 in reach; Ø151 mm footprint; 20.6 kg robot weight. Replaces UR5e. Machine tending, packaging, pick-and-place, dispensing. IP54.

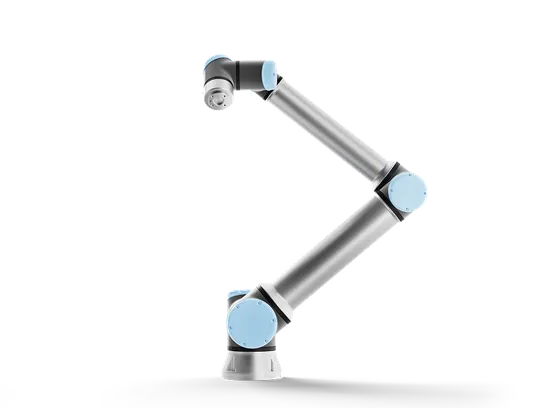

UR12e

e-Series. 12.5 kg / 27.5 lbs payload; 1300 mm / 51.2 in reach; Ø190 mm footprint; 33.5 kg robot weight. Replaces UR10e. Wide reach for welding, material handling, quality inspection. IP54.

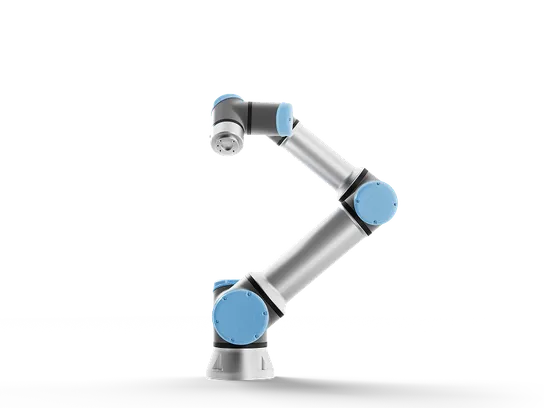

UR16e

e-Series. 16 kg / 35.3 lbs payload; 900 mm / 35.4 in reach; Ø190 mm footprint; 33.1 kg robot weight. Highest payload in e-Series. Compact high-force tasks: screw driving, press-fitting, palletizing. IP54.

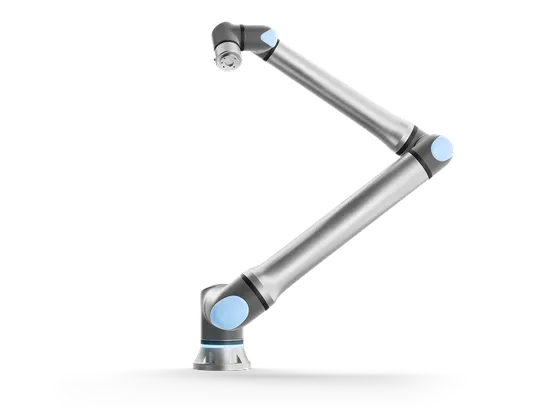

UR8 Long

UR Series. 10 kg / 22 lbs payload; 1750 mm / 68.9 in reach; Ø204 mm footprint; 44.7 kg robot weight. Extra-long reach for wide-envelope tasks — across-conveyor pick, welding, inspection. IP65; ISO10218/TUV/UL1740; up to 65% higher joint accelerations vs prior gen.

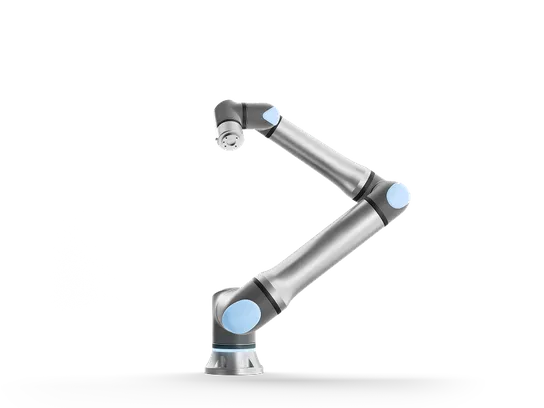

UR15

UR Series. 17.5 kg / 38.58 lbs payload; 1300 mm / 51.2 in reach; Ø204 mm footprint; 40.7 kg robot weight. High-payload mid-reach: machine tending, assembly, material handling. IP65; cleanroom certified.

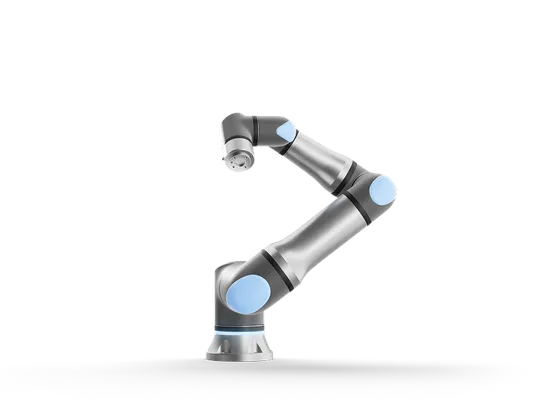

UR18

UR Series. 18 kg / 39.7 lbs payload; 950 mm / 37.4 in reach; Ø204 mm footprint; 39.2 kg robot weight. High-force compact cobot: press-fitting, screw driving, machining, deburring. IP65.

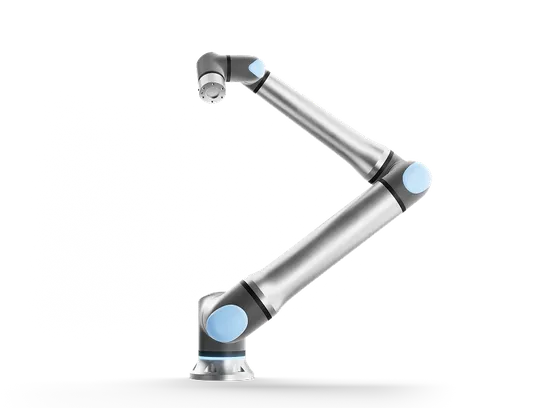

UR20

UR Series. 25 kg / 55.1 lbs payload; 1750 mm / 68.9 in reach; Ø245 mm footprint; 64 kg robot weight. Long-reach heavy cobot for end-of-line palletizing, welding, material handling. IP65. Up to 37% faster cycle times.

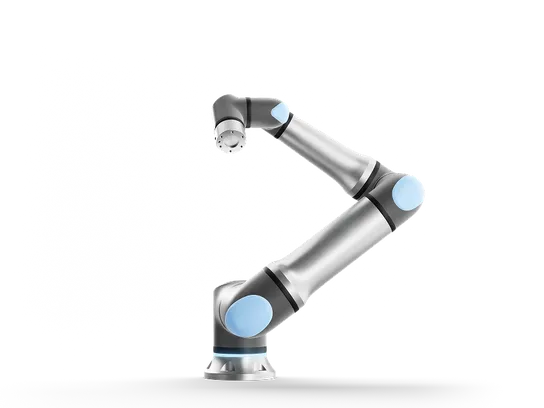

UR30

UR Series. 35 kg / 77.1 lbs payload; 1300 mm / 51.2 in reach; Ø245 mm footprint; 63.5 kg robot weight. Highest-payload cobot in the UR lineup. Palletizing, heavy assembly, automotive. IP65.
